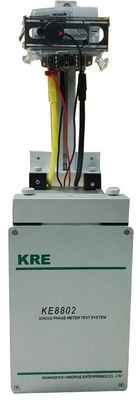

KE8802 Portable Single Phase Energy Meter Calibrate Instrument
KE8802 is manufactured by Guangzhou Kingrise, specialized in energy management and testing equipment for over 20 years.
With portable design, it is mainly applied for laboratory or outdoor test of single phase, active or reactive energy meter. Itcan test one meter at a time.
Features and functions:
- Integrated design of power source and standard meter, it could be used as portable test system
- 30V - 265V voltage output, the current output could be up to 120A
- High sability of output and high accuracy of measurement
- 2nd-21st harmonic output, with adjustable amplitude and phase
- Perfect protective alarming function, auto protection of short circuit of voltage, open circuit of current,and overload
- Full automatic or manual operation
- Operation through computer software
- Two channel pulse input could test 2 single phase meters simultaneously
- It could communicate with the computer by LAN port.
Product Specification:
| |
KE8802-60 |
KE8802-120 |
| Accuracy |
0.1 |
| Voltage output |
| Output voltage (P-N) |
30V – 265V |
| Output power of voltage |
Max. 100VA |
| Resolution |
5mV |
| Stability |
Better than ± 0.01% (50 – 265V) |
| Load regulation rate |
Better than ± 0.03% / 150 s |
| Distortion factor |
Better than ± 0.2% (linear resistance load) |
| Harmonics output |
2nd – 21st free programmable |
| Current output |
| Output current |
1mA - 60A |
1mA - 120A |
| Output power of current |
Max. 60VA |
Max. 150VA |
| Resolution |
0.05mA |
| Stability |
Better than ± 0.01% (0.1A – 100A) |
| Load regulation rate |
Better than ± 0.03% / 150 s |
| Distortion factor |
Better than ± 0.2% (linear resistance load) |
| Harmonics output |
2nd – 21st free programmable |
| Phase output |
| Output range |
0 -- 360° |
| Resolution |
± 0.01° |
| Frequency output |
| Output range |
45Hz - 65Hz |
| Resolution |
±0.001Hz |
| Pulse input |
| Number of input channels |
2 |
| Input frequency |
Max. 100kHz |
| Operation conditions |
| Power supply |
220V±10% 50/60Hz±2Hz |
| Temperature |
-10°C -- +40°C |
| Humidity |
35% -- 85%RH |
| Other |
| Demission (H x W x D) |
230mm x 155mm x 312mm (without handle)
275mm x 155mm x 312mm (with handle)
|
| Weight |
11.5kg |
13.5kg |
FAQ:
Q1: What is the MOQ?
A1: 1 set.
Q2: Is OEM/ODM available?
A2: Yes, it is! Our products can be Customized. We have design and engineer teams, we can customize products according to customers’ drawing or requirements.
Q3: Can we put/show our own Logo on your products?
A3: Yes.
Q4: What is the Terms of Payment?
A4: Western Union, L/C, T/T, D/P, D/A, MoneyGram
Q5: How is the delivery time?
A5: It depends your order quantity and it normally takes 10-30 days.
Q6: How long is the warranty?
A6: Within one year from the sale date, if there are any accessory problems,
you just provide the photos of damaged accessory, then we will provide free accessory for replace.
We also can provide technical support if you need.
Please don't be hesitate to Contact Us for any questions, your inquiry will be on our priority attention and fastest reply!
